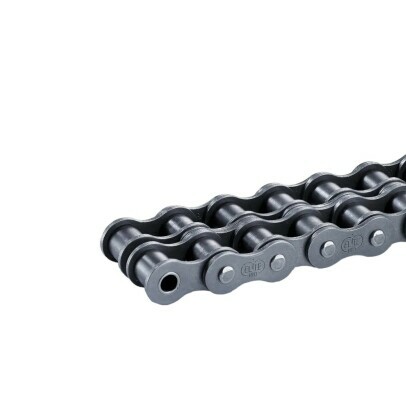

Roller chain duplex 240-2-ELITE-5M-IWIS

Name: 240-2-ELITE-5M-IWIS
Brand: IWIS
SKU: 218334

Part number : 240-2-ELITE-5M-IWIS

Description

The Roller Chain Duplex of type 240 of the brand IWIS known under the reference 240-2-ELITE-5M-IWIS. It has a pitch 76.2 mm and is to the iso606ansi norm.

Secure payment

Need help or advice?

+1.(438).800-3520

TECHNICAL DATA

BRAND

IWIS
N° EAN13

3616060989154
MATERIAL

STEEL
TYPE

240
WEIGHT

226150 G
LUBRICATION

elidurplus
PACKAGING

5 meters
SERIES

G1
CHAIN STANDARDS

iso606ansi
ISO STANDARD BREAKING LOAD

1000 KN
WEIGHT PER METER

45.23 KG
JOINT SURFACE

31.7 CM2
PITCH

76.2 MM
WIDTH BETWEEN INNER PLATES

47.35 MM
ROLLER DIAMETER

47.63 MM
AXIS DIAMETER

23.81 MM
SHAFT LENGTH

183.4 MM
OUTSIDE WIDTH INSIDE LINK

67.81 MM
PLATE THICKNESS INSIDE OUTSIDE

9,50/9,50
PLATE HEIGHT

72.39 MM
TRANSVERSE PITCH

87.83 MM
ADDITIONAL LENGTH

10.5 MM
BREAKING LOAD ASA STANDARD

20.8 KN
NUMBER OF ROWS

Duplex
NUMBER OF LINKS

32

Description

The Roller Chain Duplex of type 240 of the brand IWIS known under the reference 240-2-ELITE-5M-IWIS. It has a pitch 76.2 mm and is to the iso606ansi norm.
