What is a connecting link ?

A connecting link is a mechanical product such as master link used to quickly and easily join the end component of a roller chain without the need for additional tools such as pliers or wrenches. These connecting links, master links, releases are also called "attachment link" or "spring clip". The link consists to allow quick assembly and easy disassembly of chains, which can be useful in various applications, such as industrial, construction, agriculture, and even in lighter contexts.

How do roller chain quick-releases work?

Quick-release fasteners for roller chains are essential accessories for simplifying chain assembly and disassembly without complex tools.

Consisting of side plates, connecting pins and a retaining clip, they guarantee solid, secure attachment. Installation is quick: simply insert the pins through the chain links, position the removable plate, then lock the assembly with the clip. Ideally oriented, the clip prevents any risk of disconnection during operation.

Used in industrial, automotive and agricultural applications, quick-release fasteners combine practicality and efficiency, offering a durable, reusable solution for drive chains.

A quick-release fastener consists of several components:

  • A fixed plate: integrated with two pins that fit into the chain links.
  • A removable plate: Positioned on the ends of the pins to secure the link.
  • A retaining clip: Also known as a pin or circlip, it holds the elements in place.

In a nutshell, a roller chain quick-release allows you to quickly and easily connect the two ends of a roller chain. It is designed to be installed or removed without complex tools, while ensuring a strong, reliable connection.

Standard and material of roller chain quick-releases

Quick-release fasteners are made of steel, a robust material that resists load and wear, even under demanding conditions. They comply with internationalstandards such asISO. Opting for a standard-compliant fastener reference will ensure a durable and safe assembly.

What are the advantages of quick fasteners?

  • Easy to install: Thanks to their intuitive design, these fasteners are simple to install, even for novices.

  • Versatility: Available in different types, these products are suitable for a wide range of chains, from light to heavy-duty applications.

  • Enhanced safety: Quick-release fasteners ensure perfect link attachment , reducing the risk of failure during use.

How to choose the right quick-release fastener?

When searching for the quick-release fastener best suited to your needs, consider the following criteria:

  1. Number of links: Check the number of links required to ensure a precise connection.

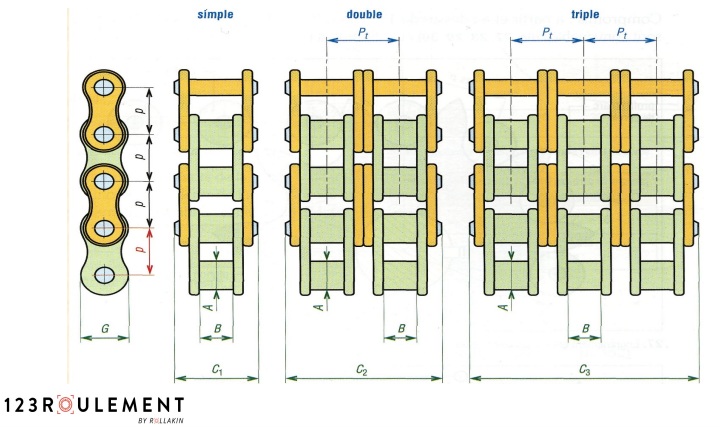

  2. Dimensions and model: Make sure the quick-release's part number corresponds to the type and size of your chain.

  3. Sprocketcompatibility : Good compatibility guarantees smooth operation and prevents premature wear.

  4. Productreference: Check the specific part number, such as the IWIS quick-release, to ensure compatibility and the necessary technical specifications.

How do I install a quick-release for a roller chain?

Installing a quick-release for a chain is a relatively simple operation, requiring just a few tools and a little patience. Here are the steps to follow to install a quick-release for a chain:

  1. Prepare the chain: Before you start, make sure the chain is clean and free of debris. This will facilitate installation and ensure a solid joint.

  2. Link alignment: Position the two ends of the chain so that they are aligned. This will allow easy insertion of the quick-release.

  3. Pin insertion: Insert the quick-release pin through the chain links. Make sure the pin is securely in place and passes completely through the links.

  4. Attaching the plates: Place the quick-release plates on either side of the pin. Use pliers to hold them in place if necessary.

  5. Securing with the pin: Insert the safety pin to lock the axle in place. Check that the pin is secure and cannot come loose.

  6. Final check: Once the quick-release has been installed, rotate the chain to make sure it's working properly and that there are no friction or jamming points.

By following these steps, you can install a quick-release efficiently and securely, ensuring smooth and reliable chain transmission.

How do I remove a roller chain quick-release?

Removing the quick-release couldn't be easier! Simply :

  1. Remove the retainingclip with pliers or a screwdriver.
  2. Remove the removableplate .
  3. Remove the fixed plate from the chain links.

And that's all there is to it!
