Compare product

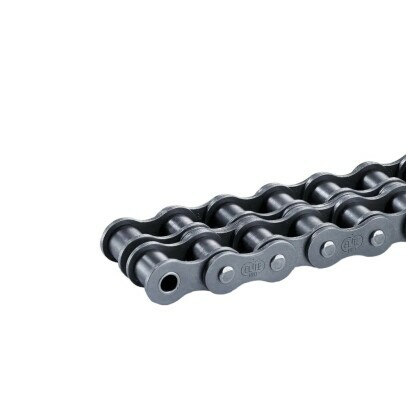

Roller chain duplex 180-2-ELITE-5M-IWIS

Name: 180-2-ELITE-5M-IWIS
Brand: IWIS
SKU: 218332

Part number : 180-2-ELITE-5M-IWIS

Description

The Roller Chain Duplex of type 180 of the brand IWIS known under the reference 180-2-ELITE-5M-IWIS. It has a pitch 57.15 mm and is to the ISO 606 ANSI norm.

Secure payment

Need help or advice?

+1.(438).800-3520

TECHNICAL DATA

BRAND

IWIS
N° EAN13

3616060989130
MATERIAL

Steel
TYPE

180
WEIGHT

132000 G
LUBRICATION

eliDUR+
PACKAGING

5 meters
SERIES

G1
CHAIN STANDARDS

ISO 606 ANSI
ISO STANDARD BREAKING LOAD

562 KN
WEIGHT PER METER

26.4 KG
JOINT SURFACE

17.5 CM2
PITCH

57.15 MM
WIDTH BETWEEN INNER PLATES

35.48 MM
ROLLER DIAMETER

35.71 MM
AXIS DIAMETER

17.46 MM
SHAFT LENGTH

140 MM
OUTSIDE WIDTH INSIDE LINK

50.85 MM
PLATE THICKNESS INSIDE OUTSIDE

7,20/7,20
PLATE HEIGHT

54.3 MM
TRANSVERSE PITCH

65.84 MM
ADDITIONAL LENGTH

9.1 MM
BREAKING LOAD ASA STANDARD

820 KN
NUMBER OF ROWS

Duplex
NUMBER OF LINKS

43

Description

The Roller Chain Duplex of type 180 of the brand IWIS known under the reference 180-2-ELITE-5M-IWIS. It has a pitch 57.15 mm and is to the ISO 606 ANSI norm.
